Light shelf type and introduction

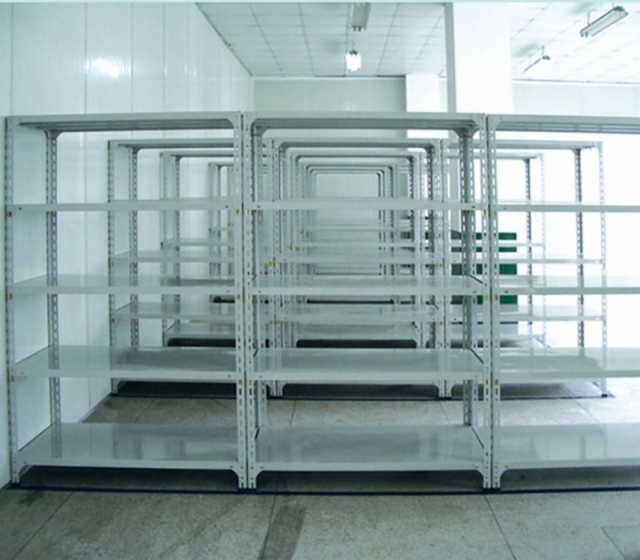

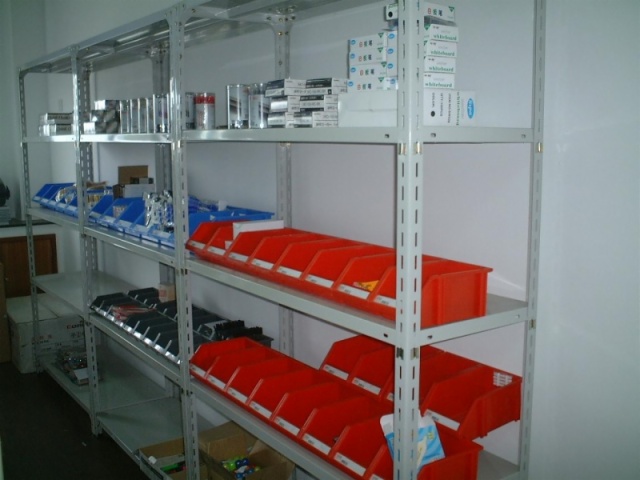

Steel shelf appearance, can be any combination of a wide range of uses.
Angle steel shelves with universal angle steel column of lightweight steel shelves, installed in the connecting and inserting way, convenient installation and disassembly, steel plate to 50mm for the section of the regulation freely from, meet a variety of requirements.
Surface treatment: electrostatic spray.
Universal angle steel commonly used specifications: * thickness * * side edge length (mm)
25*25*1.5*3000; 32*32*1.25*3000; 32*32*1.5*3000; 32*32*1.8*3000; 38*38*1.8*3000; 57*38*1.8*3000.
Accessories category: single angle; double angle bracket; rubber mat; tenon bolts.
The brief introduction of the wire rod rack:
Wire rod:
Wire rod (also known as the plastic coated pipe), is a plastic resin coated welded steel pipe, in order to prevent the coating and steel pipe separation, the use of special adhesive bonding between them. The inner wall of the steel pipe is a corrosion proof coating, the standard wire rod material is 28mm, and the wall thickness of the steel tube is 1.0mm. The use of a wire rod rack assembly is generally fluent.
Fluent article:
1, fluent is mainly used for storage, shelf supporting products, can be used as a slide, guardrail, guiding device, flexible rotation.
2, fluent in the roller wheel is made of high quality thermoplastic plastic, the friction coefficient is very small, with excellent impact resistance, strong non fragile. In the chemical properties, it is good acid and alkali, not moisture. The roller axle is made of stainless steel, carrying capacity of 6Kg/ axis.
3, fluent is used steel and roller slideway composition of supporting special shelves, is widely used in the factory assembly line and logistics distribution center picking area, especially can be combined with digital sorting system, greatly improve the material sorting and distribution efficiency and reduce errors.
